Antenna tuning hut
|
|
|
|

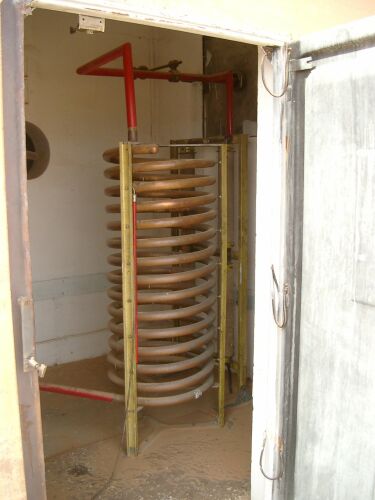

Hut at the center mast
The hut consists of two parts. Holes in the walls are provided for copper tubes connecting the two parts of the antenna tuning unit.
|
|
|
 |
The second part of the hut was built later when the LW antenna was erected and filters for the frequency of 153 kHz were necessary.
Both parts of the hut have their own entrance. There are no anterooms.
|
|
 |

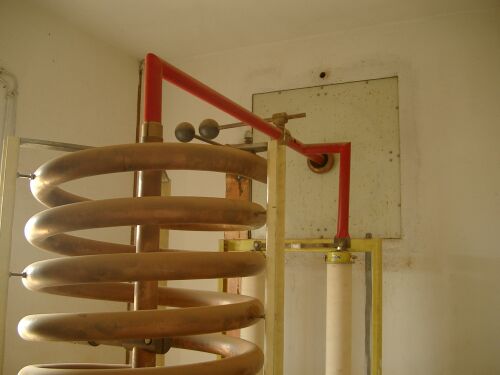

A coil and the feed through insulator between mast and antenna tuning hut
|
 |

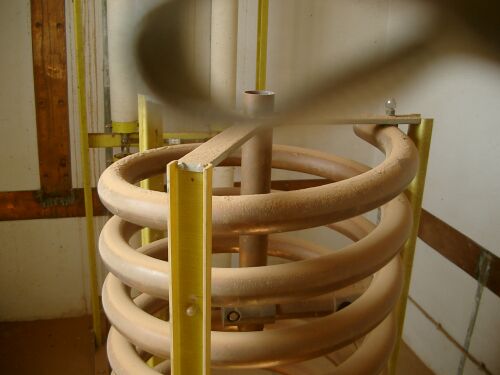

Horizontal coil
|
|

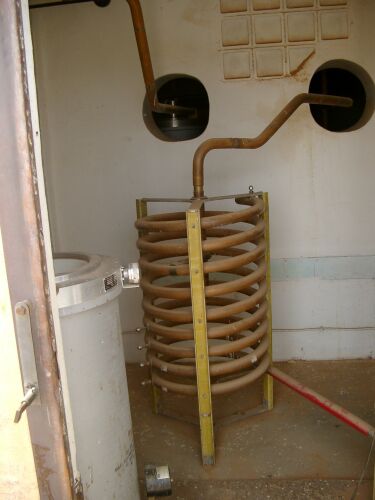

Hut at the base of the director
|
|
|
 |

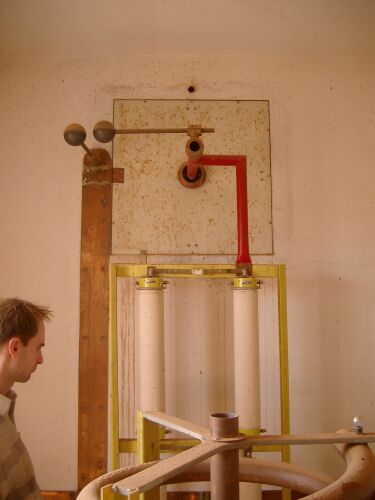

Feed through insulator between mast and antenna tuning hut.
But in reality the hut at the base of the director is not in use, as the mast is directly grounded by a pipe.
On the left side: Michael Schmolke
|
 |
Sand everywhere
|

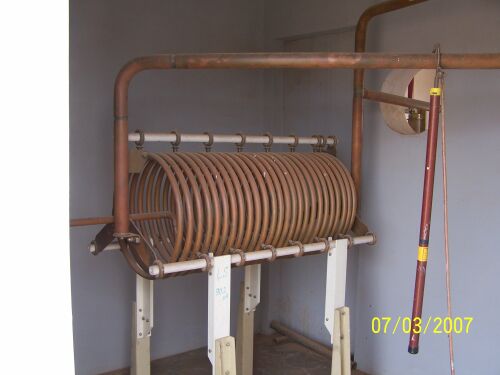

Hut at the base of the reflector
|
|
 |
Feed through insulator between mast and antenna tuning hut,
the reflector is tuned by this coil.
|
|
 |

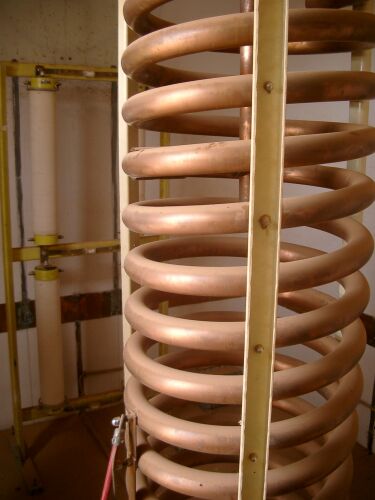

The tuning coil for the refector.
|
|
|
 |
|
